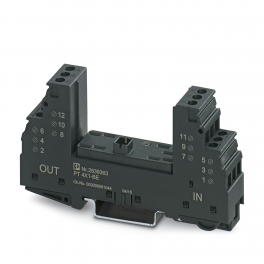

PT 4X1-BE Surge protection base-element

Manufactured by

Brand PHOENIX CONTACT

Base element for protective plug PT with protective circuit for 4 conductors of signal circuits grounded on one side, with bridge between the connections 3-4 (GND) and 9-10, for mounting on NS 35/7.5 and NS 35/15, housing width: 17.5 mm

4017918182793

No suppliers found

Product recommended retail price (RRP) is

0⁰⁰€

63⁰⁰€ 0 € pcs.

All prices without tax

All prices with tax

inquiry

only

available

100+

inquiry

pcs.

Properties

Description

Dimensions

Files

Codes

Nominal voltage UN

48 V AC

Notes on operation

When the PT...-BE base elements are used, the connections 9/10 (GND) are directly connected to the DIN rail via the metal mounting foot.

Maximum continuous operating voltage UC

55 V AC

77 V DC

Product type

Base element

Product family

PLUGTRAB PT

Type

Base element, DIN rail mounting

Number of positions

Surge protection fault message

none

Overvoltage category

III

Pollution degree

Nominal voltage U_N

48 V AC

Connection method

Screw connection

Screw thread

Tightening torque

0.5 Nm

Conductor cross-section flexible

0.2 mm² ... 2.5 mm²

Conductor cross-section rigid

0.2 mm² ... 4 mm²

Conductor cross-section AWG

24 ... 12

Width

17.7 mm

Height

90 mm

Depth

51.5 mm (incl. DIN rail 7.5 mm)

Horizontal pitch

1 Div.

Color

black (RAL 9005)

copper color

Flammability rating according to UL 94

V-0

Housing material

PA 6.6

Open side panel

Maximum continuous operating voltage U_C

55 V AC

77 V DC

Rated current

300 mA (45 °C)

Resistance per path

4.7 Ω ±10 %

Max. required back-up fuse

315 mA (T)

Degree of protection

IP20

Ambient temperature (operation)

-40 °C ... 85 °C

Ambient temperature (storage/transport)

-40 °C ... 85 °C

Altitude

≤ 2000 m (amsl)

Standards/specifications

EN 61643-21

IEC 61643-21

Note

2000 + corrigendum 2001 + A1:2008, modified + A2:2012

2001 + A1:2009 + A2:2013

Mounting type

DIN rail: 35 mm

Length

Width

Height

Weight Net

Weight

Package

Volume

m³

No files found

ECLASS-13.0

27171592

ECLASS-15.0

27171592

ETIM 10.0

EC002497

UNSPSC 21.0

39121600

GTIN

4017918182793
