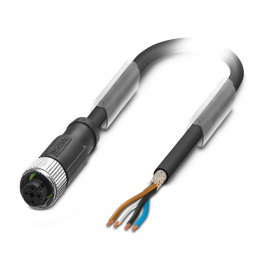

SAC-4P- 3,0-PUR/M12FS SH Sensor/actuator cable

1682854

SAC-4P- 3,0-PUR/M12FS SH Sensor/actuator cable

Manufactured by

Brand PHOENIX CONTACT

Sensor/actuator cable, 4-position, PUR halogen-free, black-gray RAL 7021, shielded (Advanced Shielding Technology), free cable end, on Socket straight M12, coding: A, cable length: 3 m

4017918169169

No suppliers found

Product recommended retail price (RRP) is

0⁰⁰€

19²⁰€ 0 € pcs.

All prices without tax

All prices with tax

inquiry

only

available

100+

inquiry

pcs.

Properties

Description

Dimensions

Files

Codes

Nominal voltage UN

48 V AC

60 V DC

Product type

Sensor/actuator cable

Application

Standard

Nominal current IN

4 A

Number of positions

No. of cable outlets

Shielded

yes

Coding

Overvoltage category

Degree of pollution

Flammability rating according to UL 94

Seal material

NBR

Material of grip body

TPU, hardly inflammable, self-extinguishing

Contact material

CuSn

Contact surface material

Ni/Au

Contact carrier material

TPU GF

Material for screw connection

Zinc die-cast, nickel-plated

Insulation resistance

≥ 100 GΩ*km (at 20 °C)

≥ 100 MΩ

Nominal voltage U_N

48 V AC

60 V DC

Nominal current I_N

4 A

Insertion/withdrawal cycles

≥ 100

Status display

Status display present

Tightening torque

0.4 Nm (M12 connector)

Type

free cable end

Socket straight M12

Coding type

Cable length

3 m

Cable weight

36 kg/km

UL AWM Style

20549 / 10493 (80°C/300 V)

Cable type

PUR halogen-free black [PUR]

Conductor structure signal line

42x 0.10 mm

AWG signal line

Conductor cross-section

4x 0.34 mm² (Signal line)

Wire diameter incl. insulation

1.27 mm ±0.02 mm (Signal line)

1.27 mm ±0.05 mm (Signal line)

External cable diameter

4.95 mm ±0.2 mm

Outer sheath, material

PUR

External sheath, color

black-gray RAL 7021

Conductor material

Bare Cu litz wires

Material wire insulation

Single wire, color

brown, white, blue, black

Thickness, insulation

≥ 0.21 mm

Thickness, outer sheath

approx. 0.50 mm

Overall twist

4 wires, twisted

Optical shield covering

80 %

Max. conductor resistance

max. 58 Ω/km (at 20 °C)

Wave impedance

≥ 62 Ω (f = 10 MHz)

Cable capacity

≤ 135 pF/m (Wire/shield)

≤ 80 pF/m (Conductor-Conductor)

Nominal voltage, cable

≤ 300 V

Test voltage

≥ 3000 V

Minimum bending radius, fixed installation

5 x D

Length

Width

Height

Weight Net

Weight

Package

Volume

m³

No files found

ECLASS-13.0

27060311

ECLASS-15.0

27060311

ETIM 10.0

EC001855

UNSPSC 21.0

26121600

GTIN

4017918169169
