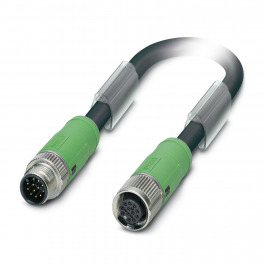

SAC-12P-MS/12,0-35T/FS SH SCO Sensor/actuator cable

1508711

SAC-12P-MS/12,0-35T/FS SH SCO Sensor/actuator cable

Manufactured by

Brand PHOENIX CONTACT

Sensor/actuator cable, 12-position, PUR/PVC, black RAL 9005, shielded, Plug straight M12 SPEEDCON, coding: A, on Socket straight M12 SPEEDCON, coding: A, cable length: 12 m

4063151969998

only

available

100+

99999

pcs.

(2026-10-12)

Supply from Phoenix Contact’s warehouse

Product recommended retail price (RRP) is

0⁰⁰€

173⁷⁰€ 0 € pcs.

All prices without tax

All prices with tax

inquiry

only

available

100+

inquiry

2026-10-12

pcs.

Properties

Description

Dimensions

Files

Codes

Nominal voltage UN

30 V AC

30 V DC

Product type

Sensor/actuator cable

Application

Standard

Nominal current IN

1.5 A

Number of positions

No. of cable outlets

Shielded

yes

Coding

Overvoltage category

Degree of pollution

Flammability rating according to UL 94

Seal material

NBR

Material of grip body

TPU, hardly inflammable, self-extinguishing

Contact material

CuZn

Contact surface material

Ni/Au

Contact carrier material

PA 6.6

Material for screw connection

Zinc die-cast, nickel-plated

Insulation resistance

≥ 10 MΩ*km (at 20 °C)

≥ 100 MΩ

Nominal voltage U_N

30 V AC

30 V DC

Nominal current I_N

1.5 A

Insertion/withdrawal cycles

≥ 100

Status display

Status display present

Type

Plug straight M12 SPEEDCON

Socket straight M12 SPEEDCON

Locking type

SPEEDCON

Coding type

Cable length

12 m

Cable weight

87 kg/km

UL AWM Style

20233 / 1061 (80°C/300 V)

Cable type

Black PUR/PVC twisted pair [35T]

Conductor structure signal line

18x 0.10 mm

AWG signal line

Conductor cross-section

12x 0.14 mm² (Signal line)

Wire diameter incl. insulation

1 mm ±0.05 mm (Signal line)

External cable diameter

8.50 mm ±0.2 mm

Outer sheath, material

PUR

External sheath, color

black RAL 9005

Conductor material

Tin-plated Cu litz wires

Material wire insulation

PVC

Single wire, color

Twisted pairs

2 cores to the pair

Overall twist

Six pairs around the filler to the core

Optical shield covering

85 %

Max. conductor resistance

≤ 142 Ω/km (at 20 °C)

Nominal voltage, cable

42 V AC

Test voltage

1500 V AC

Minimum bending radius, fixed installation

5 x D

Minimum bending radius, flexible installation

10 x D

Smallest bending radius, fixed installation

43 mm

Smallest bending radius, movable installation

85 mm

Length

Width

Height

Weight Net

Weight

Package

Volume

m³

No files found

ECLASS-13.0

27060311

ECLASS-15.0

27060311

ETIM 10.0

EC001855

GTIN

4063151969998
