1088678

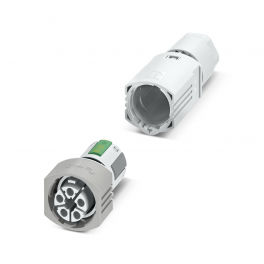

IPD PL 5P2,5 F GY Connector

Manufactured by

Brand PHOENIX CONTACT

Connector, connection method: Push-lock connection, number of positions: 4+PE, Socket, 0.5 mm² ... 2.5 mm², 600 V, 17.5 A, PA, light gray, coding: P, external cable diameter: 7 mm ... 11 mm and 11 mm ... 16 mm

4055626890951

No suppliers found

Product recommended retail price (RRP) is

0⁰⁰€

15⁶⁰€ 0 € pcs.

All prices without tax

All prices with tax

inquiry

only

available

100+

inquiry

pcs.

Properties

Description

Dimensions

Files

Codes

Assembly note

NOTE: Observe the permissible bending radii when routing cables, since the degree of protection may be at risk if the bending forces are too high. Reduce mechanical loads upstream of the connector, e.g., by using cable ties.

Nominal voltage UN

600 V AC

600 V DC

Product type

Installation connector

Nominal current IN

17.5 A

Product family

IPD

Number of positions

Connection profile

4+PE

Position marking

1, 2, 3, N, PE

Number of connections per position

Coding

Overvoltage category

III

Degree of pollution

Rated surge voltage (III/3)

6 kV

Rated current

17.5 A

Rated voltage (III/3)

600 V

Nominal voltage U_N

600 V AC

600 V DC

Nominal current I_N

17.5 A

Connection method On the field side

Push-lock connection

Conductor cross-section flexibel

0.5 mm² ... 2.5 mm²

Conductor cross-section solid

0.5 mm² ... 2.5 mm²

Conductor cross-section with ferrule

0.5 mm² ... 2.5 mm²

Connection cross section AWG

20 ... 14

Width

32.5 mm

Height

32.1 mm

Length

91.6 mm

Color (Housing)

light gray (RAL 7035)

Material Housing

Material Seal

NBR

Flammability rating according to UL 94

Contact material

Contact surface material

Ni/Ag/Sn

External cable diameter

11 mm ... 16 mm

7 mm ... 11 mm

Insertion/withdrawal cycles

100 (IP66)

50 (IP66/IP68/IP69K)

Degree of protection

IP66

IP68 (2 m / 24 h)

IP69K

Touch-proof when not plugged in (IP2X)

Impact strength

IK07

Ambient temperature (operation)

-30 °C ... 100 °C

Temperature when conductor connected

-5 °C ... 50 °C

Ambient temperature (storage/transport)

-30 °C ... 100 °C

Resistance to UV radiation

yes

Length

Width

Height

Weight Net

Weight

Package

Volume

m³

No files found

ECLASS-13.0

27440605

ECLASS-15.0

27440605

ETIM 10.0

EC002560

UNSPSC 21.0

39121400

GTIN

4055626890951
